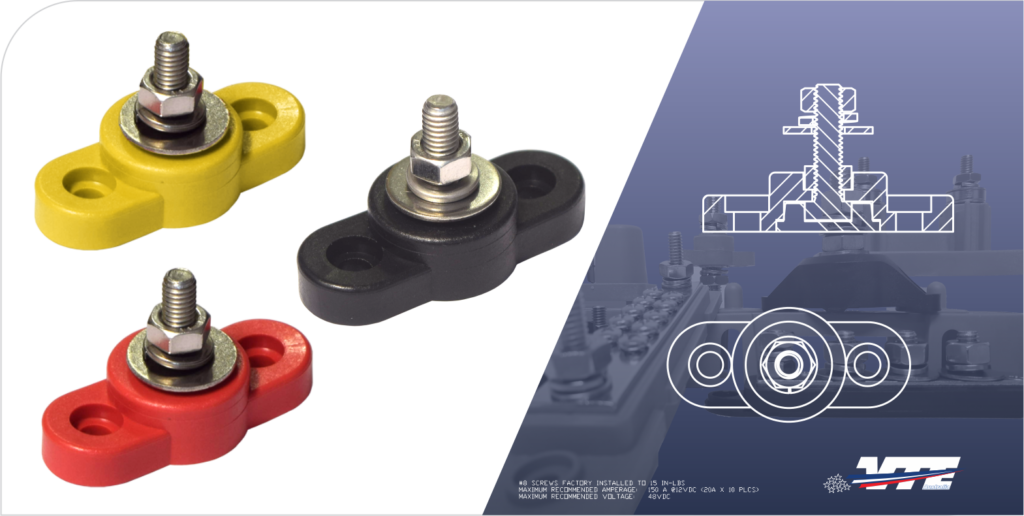

Our new low profile single point power posts can be used to connect power lines or consolidate ground lines in tight areas where space is at a premium. Available in metric & imperial sizes. At a very attractive cost, our single point posts are easy on the budget and very popular.
- 6mm Post – Full Height: 31.47mm
- 8mm Post – Full Height: 32:89mm
- Used to connect two or more voltage lines
- Hook up negative return lines to single cable
- Lower profile than our 770 Series
- Current Rating: 15 amps @ 12 vdc
- Max Voltage: 48 vdc
- Max M6 Fastener Torque: 10 IN./LBS. [1.12 Nm]
- Max M8 Fastener Torque: 96 IN./LBS. [10.8Nm]
- IMPORTANT: Amperage ratings are for reference only. Current capacity is determined by the cables used, not the junction post. Current ratings are related to expected cable capacities.
- Available material: Glass-Filled nylon
- Available Colors: Red & Black
- Connection post: Stainless steel
- Connection nuts: Stainless Steel
- Flat washer: Stainless steel
- Spring washer: Stainless steel.
| Part Number | Availability | Description | Type | Category |
|---|---|---|---|---|
| 77306CN02 | 1 Point Power Distribution Post: Red, M6 Post | Assembly | Low Profile | |
| 77306CN05 | 1 Point Power Distribution Post: Yellow, M6 Post | Assembly | Low Profile | |
| 77306CN14 | Stocked | 1 Point Power Distribution Post: Black, M6 Post | Assembly | Low Profile |
| 77308CN02 | 1 Point Power Distribution Post: Red, M8 Post | Assembly | Low Profile | |
| 77308CN05 | 1 Point Power Distribution Post: Yellow, M8 Post | Assembly | Low Profile | |
| 77308CN14 | Stocked | 1 Point Power Distribution Post: Black, M8 Post | Assembly | Low Profile |
