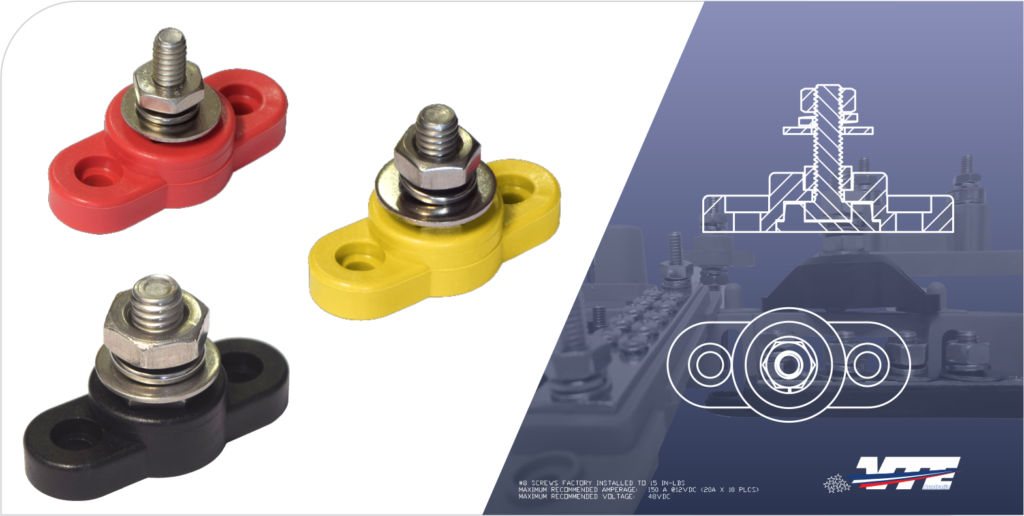

Power Distribution Post – Low Profile Imperial

Our new low profile single point power posts can be used to connect power lines or consolidate ground lines in tight areas where space is at a premium. Available in metric & imperial sizes. At a very attractive cost, our single point posts are easy on the budget and very popular.

  • 1/4″ Post – Full Height: 1.26 in [31.88mm]
  • 5/16″ Post – Full Height: 1.3 in [32.89mm]
  • 3/8″ Post – Full Height: 1.27 in [32.26mm]
  • Used to connect two or more voltage lines
  •  Hook up negative return lines to single cable
  •  Lower profile than our 770 Series
  •  Current Rating: 15 amps @ 12 vdc
  •  Max Voltage: 48 vdc
  • Max 1/4″ Fastener Torque: 60 IN./LBS. [6.77 Nm]
  • Max 5/16″ Fastener Torque: 120 IN./LBS. [13.5 Nm]
  • Max 3/8″ Fastener Torque: 144 IN./LBS. [16.2 Nm]
  • IMPORTANT: Amperage ratings are for reference only. Current capacity is determined by the cables used, not the junction post. Current ratings are related to expected cable capacities.
  •  Available material: Glass-Filled nylon
  •  Available Colors: Red & Black
  •  Connection post: Stainless steel
  •  Connection nuts: Stainless Steel
  •  Flat washer: Stainless steel
  •  Spring washer: Stainless steel.
Part NumberAvailabilityDescriptionTypeCategory
77325CN021 Point Power Distribution Post: Red, 1/4″ PostAssemblyLow Profile
77325CN051 Point Power Distribution Post: Yellow, 1/4″ PostAssemblyLow Profile
77325CN14Stocked1 Point Power Distribution Post: Black, 1/4″ PostAssemblyLow Profile
77331CN021 Point Power Distribution Post: Red, 5/16″ PostAssemblyLow Profile
77331CN051 Point Power Distribution Post: Yellow, 5/16″ PostAssemblyLow Profile
77331CN14Stocked1 Point Power Distribution Post: Black, 5/16″ PostAssemblyLow Profile
77337CN021 Point Power Distribution Post: Red, 3/8″ PostAssemblyLow Profile
77337CN051 Point Power Distribution Post: Yellow, 3/8″ PostAssemblyLow Profile
77337CN14Stocked1 Point Power Distribution Post: Black, 3/8″ PostAssemblyLow Profile
